Interline Brands DuraPro Flexible Water Connectors

DuraPro flexible water connectors are universally adaptable to fit most plumbing installations. Manufactured to the highest standards, DuraPro water connectors use only the highest quality components and materials. Each connector is pressure tested prior to shipment to ensure reliable, leak-free performance. Durable, flexible, and easy to install, DuraPro water connectors won’t kink, crimp, rust, or corrode. All DuraPro water connectors are lead-free and meet the federal requirements of the Safe Drinking Water Act.

General Specifications

Material

• Lead-free construction

• Chrome plated brass connector nuts for 3/8" & 1/2" compression,1/2 FIP and 7/8” BC connections

• Lead-free machine brass, four-barb inserts

• 304 Stainless steel ferrules

• Superior quality SantopreneTM seals and gaskets

• All connectors use NSF certified PVC liner with 18-count encapsulated nylon reinforcement braid

• 30 Gauge 304 stainless steel overbraid (Armored Connectors Only)

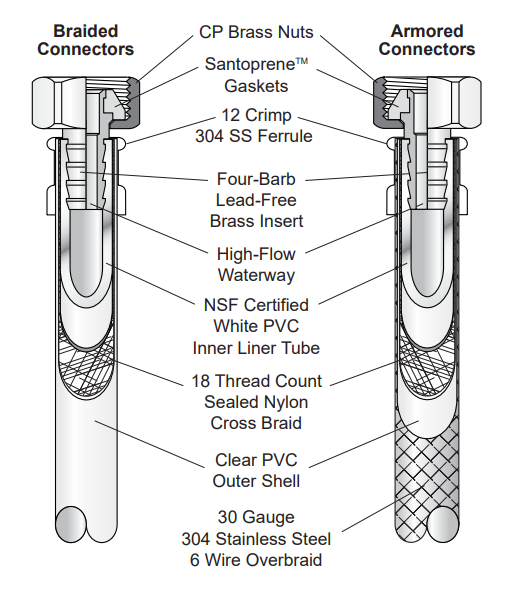

Construction

• Flexible, Non-Armored- 3 Ply (inner liner, nylon web braid and outer jacket)
• Flexible, Armored- 4 Ply (inner liner, nylon web braid, outer jacket and SS overbraid)
• Inner liner, nylon web braid and outer jacket are heat-fused to form a uni-ply tube
• Tight webbing and tube seal enable tight turns and radii without tube collapse
• A 12 crimp ferrule ensures a reliable, secure swedge between tube and insert
• Bell end ferrule reduces bending and expansion stresses between the tube and crimp
• Brass insert inlets are chamfered to increase water flow and reduce noise
• Data tag with scannable UPC barcode affixed

Performance

• 125 PSI design working pressure
• For potable water applications ranging from 40° F to 140° F
• Flexible, Non-Armored- 1200 PSI burst pressure @ 70° F
• Flexible, Armored- 2400 PSI burst pressure @ 70° F

Compliance

• ASME A112.18.6-2009/CSA B125.6-2009
• Complies with US SDWA Lead-free Mandate

• California AB1953 & Proposition, 65 Compliant

Approvals

• IAPMO UPC Certified
• IAPMO Certified to NSF/ANSI 61-9 (2011)
• IAPMO Certified to Section 116875 of the California Health & Safety Code
• NSF Certified Inner Tube
