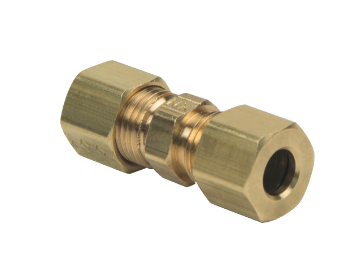

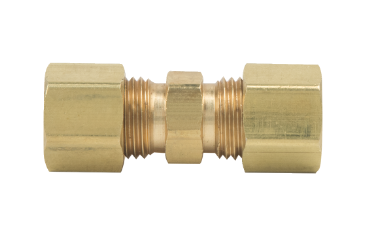

BrassCraft O.D. Tube Both Ends

62-4

Description

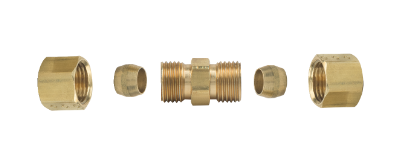

The compression union is highly dependable and an economical choice of fitting within multiple applications including heating and other industrial markets. One-piece brass body provides strength, durability and longer-lasting performance. This fitting features a vibration resistant construction. It resists mechanical pullout and is designed for high pressure service. Designed for use with potable and non-potable water, instrumentation, hydraulic and pneumatic systems.

Machined from brass
1/4 in. O.D. Tube, Both Ends
Designed for use with aluminum, copper and plastic tubing. Plastice tubing requires NPT insert and oPT sleeve. Not intended for steel tubing
For use with potable and non-potable water, instrumentation, hydraulic and pneumatic systems
Plastic and PEX tubing installations require sleeves and/or inserts. Check installation instructions for exact requirements
Compression fittings do not require flaring, soldering or other types of tube preparation
Rough Brass
May be used in both indoors and outdoors.
Temperature rating: -65° to 250° F at maximum operating pressures
Working pressure: 150 PSI

Resources

• 225.01 BrassCraft Compression Fittings Installation Instructions

• BrassCraft Brass Fittings Catalog

Specifications

• 62 Series BrassCraft Compression x Compression Union Fittings Product Submittal
