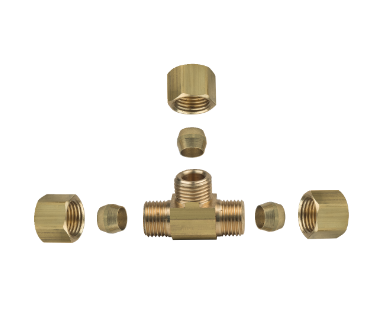

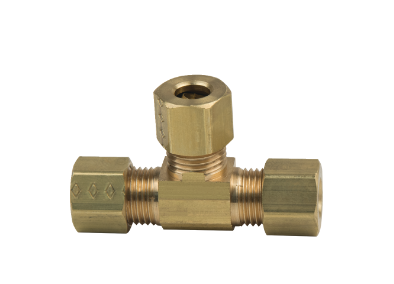

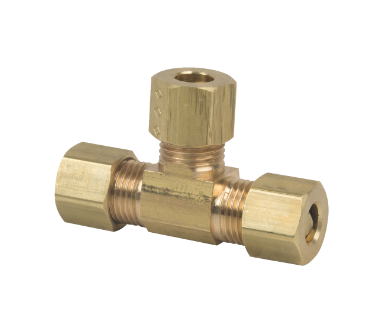

BrassCraft O.D. Tube All 3 Ends

Product Code: 64-4

Description

The BrassCraft compression tee is a special fitting designed for joining existing metal and PVC pipes or tubes. Compression tees are primarily used for pipe repairs, compression tees are used to tap a new pipe/tube into an existing one.

• One-piece brass body provides strength, durability and longer-lasting performance
• 1/4 in. O.D. Tube, All 3 Ends
• Designed for use with aluminum and copper tubing. Not recommended for steel tubing
• Designed for use with potable and non-potable water, instrumentation, hydraulic and pneumatic systems
• Little to no tube preparation required. Connection does not require flaring, soldering, or other types of tube preparation
• Plastic and PEX tubing installations require sleeves and/or inserts.  Check installation instructions for exact requirements
• Rough Brass
• May be used in both indoors and outdoors.
• Temperature rating: -65° to 250° F at maximum operating pressures
• Working pressure: 300 psi

Resources

• 225.01 BrassCraft Compression Fittings Installation Instructions
• BrassCraft Brass Fittings Catalog

Specifications

• 64 Series BrassCraft Compression Tee Fitting Product Submittal
