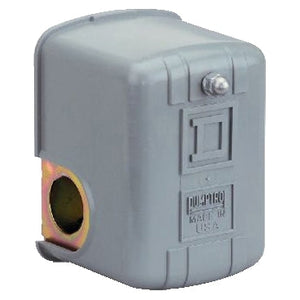

Schneider Square D Pumptrol Water Pump Switch Adjustable Diff
Model: 9013FYG2J25
Description
This product is part of the Nema Pressure Switches range, an offer of water pump switches. This water pump switch has 2 normally closed, snap action, DPST-DB (double pole single throw, double break) form YY contacts and a pressure setting value of 60psi to 80psi. The pump switch with a pressure sensor size of 80psi (5psi to 60psi), an adjustable range on rising pressure of 25psi to 80psi and approximate adjustable differential of 20psi to 30psi. It is furnished with screw clamp terminals for electrical connection and 0.25inch NPSF internal for fluid connection. This switch has a diaphragm actuator which can be operated from any position and adjustable differential scale for internal settings. It is designed to meet higher horsepower and pressure requirements. The enclosure is made of polypropylene. It is available in size of 2.78inch (W) x 3.76inch (D) x 2.8inch (H) and weighs 1lb. It is suitable for pressure controlling or monitoring of water pumps, compressors, agricultural/irrigation water systems, moulding presses, injection moulders, grinding machines, machining centres, complex and special machines. It is an IP20 and NEMA 1 rated product. This product is certified by CE, CSA and UL. Meets UL 508 and NSF ANSI 61 Annex G standards. Every pressure switch has two operating points, one on rising pressure and one of falling pressure. The operating point on rising pressure is referred to as the TRIP POINT or cut out for pumps and compressors. Power pressure switch rated for the direct control of motors in pump applications. Rugged, robust construction provides a long life and years of uninterrupted, worry-free service. Electromechanical switch to monitor and control pressure conditions for industrial and end-users applications.
Specifications
| Range of Product | Square D Pumptrol |
|---|---|
| Pressure sensor size | 80 psi (551.58 kPa) 5…60 psi (34.47…413.69 kPa)) |
| value of setting | 60...80 psi |
| Electrical circuit type | Power circuit |
| Product Specific Application | Control electrically driven water pumps |
| Quantity per Set | 1 |
| Type of Packing | Individual |
| Pressure sensor type | Electromechanical pressure switch |
|---|---|
| Controlled fluid | Fresh water -22…257 °F (-30…125 °C)) |
| Adjustable range on rising pressure | 25…80 psi (172.37…551.58 kPa) |
| Approximate adjustable differential | 20…30 psi (137.90…206.84 kPa) |
| Destruction pressure | 220 psi (1516.85 kPa) |
| Pressure actuator | Diaphragm |
| Pressure switch type of operation | Regulation between 2 thresholds |
| Scale type | Adjustable differential |
| Setting | Internal |
| local display | Without |
| Contacts type and composition | 2 NC, snap action, DPST-DB, Form YY |
| Cable entry number | 2 0.88 in (22.35 mm) cable entries with 0.84 in across flats UL 508 |
| Electrical connection | Screw-clamp terminals 10 AWG Screw-clamp terminals 5.261 mm² |
| Fluid connection type | 0.25 inch NPSF internal UL 508 |
| Short-circuit protection | 20 A cartridge fuse gG |
| Materials in contact with fluid | Zinc plated steel or equivalent flange Nitrile (Buna-N) or equivalent rubber diaphragm |
| Material | Polypropylene Cover Noryl thermoplastic resin or equivalent Cover |
| operating position | Any position |
| Motor power kW | 1.5 kW 2 hp)115 V AC, 1 phase 2.2 kW 3 hp)115 V AC, 3 phase 2.2 kW 3 hp)230 V AC, 1 phase 3.7 kW 5 hp)230 V AC, 3 phase |
| Electrical durability | 100000 cycles 10 cyc/mn |
| Mechanical durability | 300000 cycles |
| Terminal block type | 4 terminals |
| Maximum operating rate | 10 cyc/mn |
| [Ui] rated insulation voltage | 575 V UL 508 |
| Net Weight | 1 lb(US) (0.45 kg) |
| Repeat accuracy | +/- 3 % |
| Terminals description ISO n°1 | L1-T1 L2-T2 |
| Width | 2.78 in (70.61 mm) |
| Height | 2.8 in (71.12 mm) |
| Depth | 3.76 in (95.50 mm) |
| Factory modification | - |
| Standards | UL 508 CE NSF ANSI 61 Annex G |
|---|---|
| Ambient Air Temperature for Operation | -33…257 °F (-36…125 °C) |
| Ambient Air Temperature for Storage | -33…257 °F (-36…125 °C) |
| Protective treatment | None |
| NEMA degree of protection | NEMA 1 UL 50 |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Product Certifications | UL listed file E12158 CSA file LR25490 |
| Category | 21534-9013 FSG,FYG (INDIVIDUAL - CP7I) |
|---|---|
| Discount Schedule | CP7I |
| GTIN | 785901561460 |
| Returnability | Yes |
| Country of origin | MX |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.91 in (7.4 cm) |
| Package 1 Width | 4.02 in (10.2 cm) |
| Package 1 Length | 4.09 in (10.4 cm) |
| Package 1 Weight | 12.80 oz (362.9 g) |
| Warranty | 18 months |
|---|
